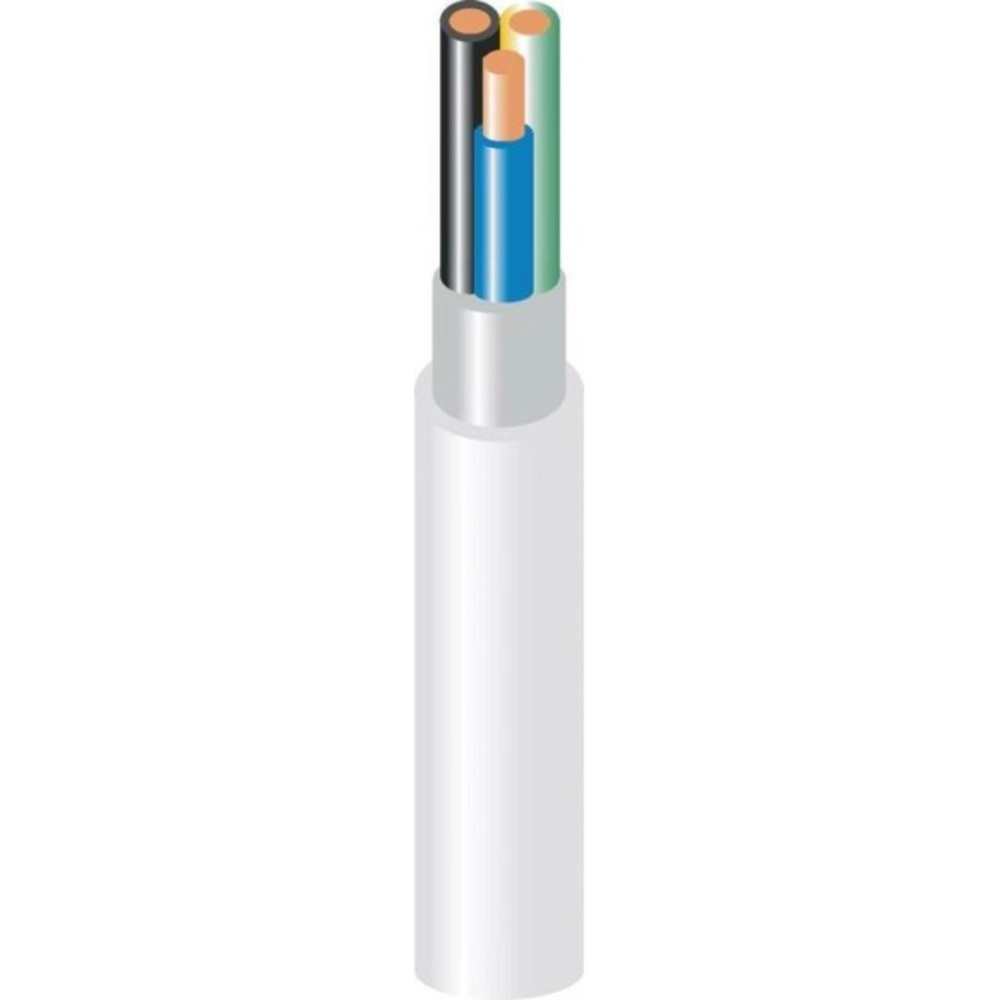

Exq/xpj-hf 5g1,5 halogen-free and flame retardant installation cable. Smoke generation in the event of fire is small, transparent (to facilitate evacuation) and not harmful to electronic equipment. For fixed surface or flush-mounted installations, indoors and outdoors. Suitable for installation in a slot covered with plaster. Not for installation directly in ground or directly in concrete without protective ducting. Cable needs protection from direct sunlight.
| Parametry podstawowe | |
| Czas dostawy | 2-8 business days |
| Outer sheath | Halogenfree polymer, white |
| Core insulation | XLPE, HFFR |
| Insulation color | Brown, black, grey, blue, yellow-green |
| Conductor | Copper |
| Napięcie znamionowe (V) | 300/500 |
| Parametry uzupełniające | |
| Length (m) | 1 |
| Number of cores | 5 |
| Bez halogenu | Yes |
| Conductor cross-section (mm²) | 1.5 |
| Średnica (mm) | 9.5 |
| UV-stabilised | No |
| Weight (kg/km) | 155 |
| Środowisko pracy | |
| Normy | SS 424 02 19-5, IEC 61034, EN 50267-2-2, IEC 60332-1-2, IEC 60332-3, HD 60364-5-52 |
| Certyfikaty produktu | CE |
| Installation temperature (°C) | -15 |
| Maximum operating temperature (˚C) | +70 |
| Short-circuit max. conductor temperature (˚C) | +250 |
https://emikson.pl/exq-xpj-hf-5g15-installation-cable-halogen-free
PLN
http://schema.org/InStock
2026-01-01
- Cena netto: 6.38 zł
- Producent: Prysmian Group
- Kod produktu: XPJHF5015001
- Dostępność: Dostępne
